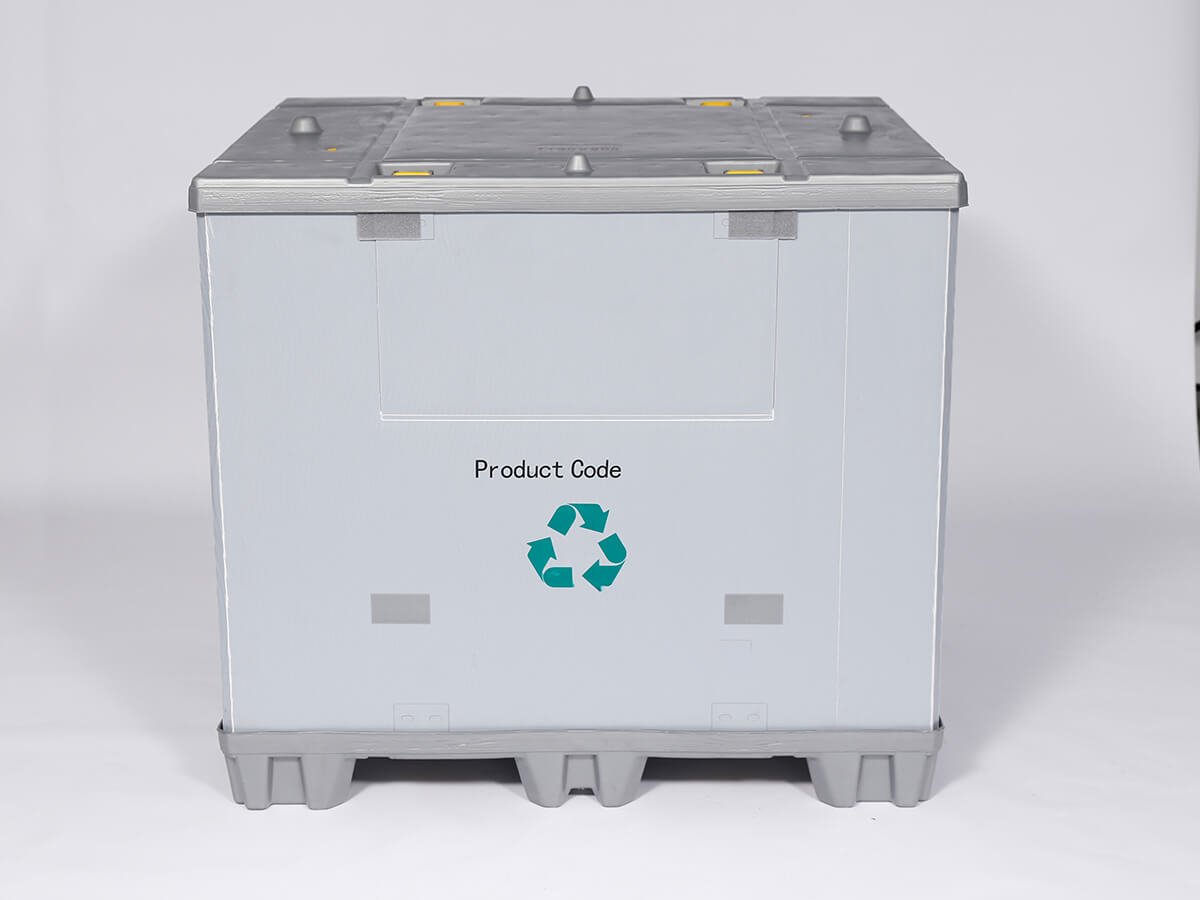

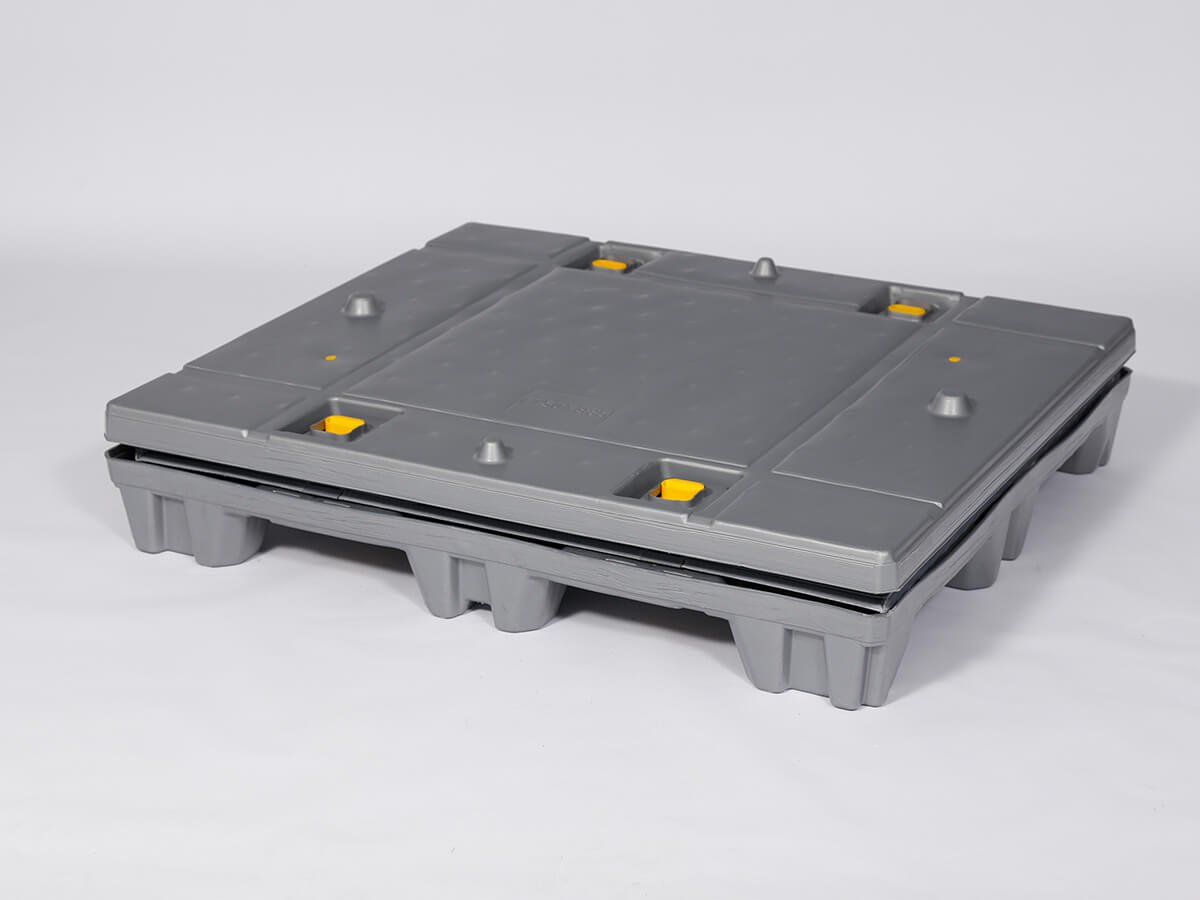

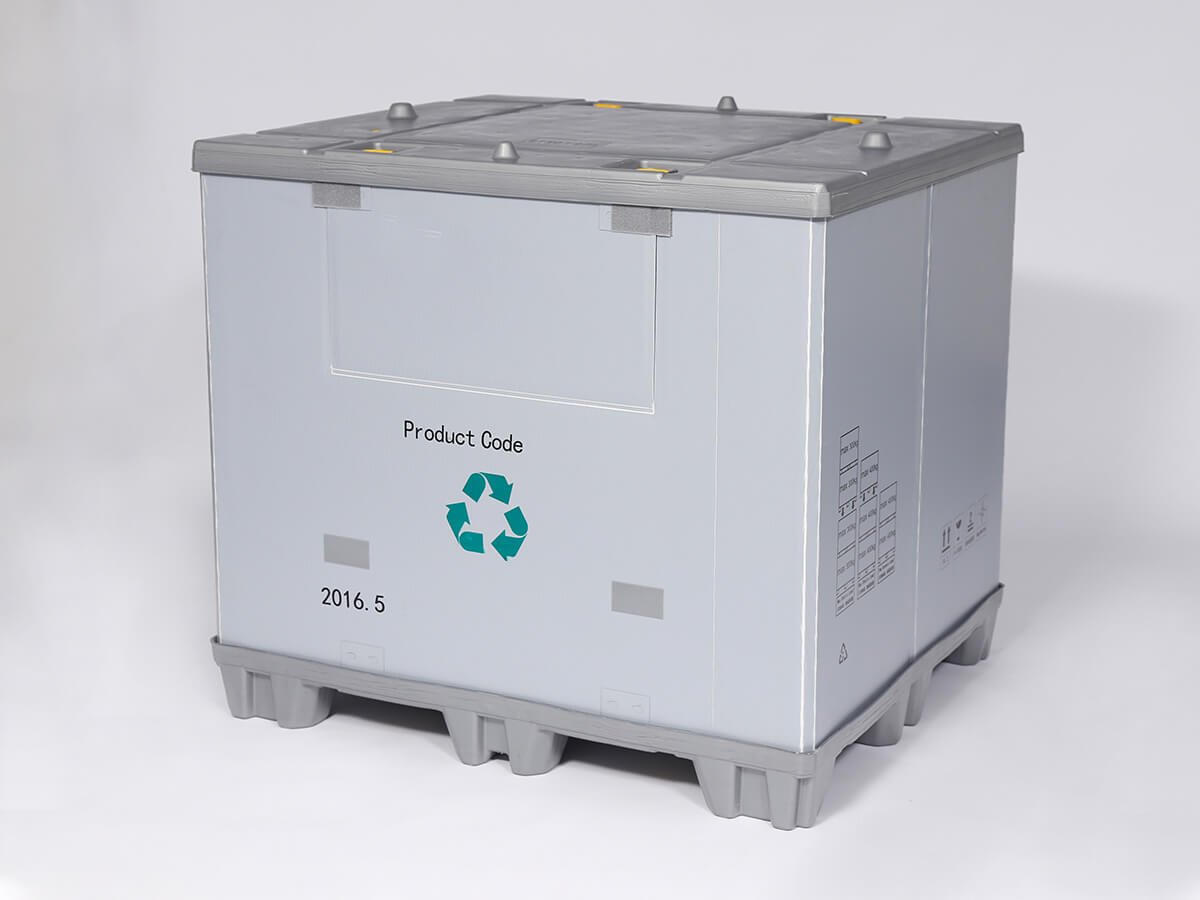

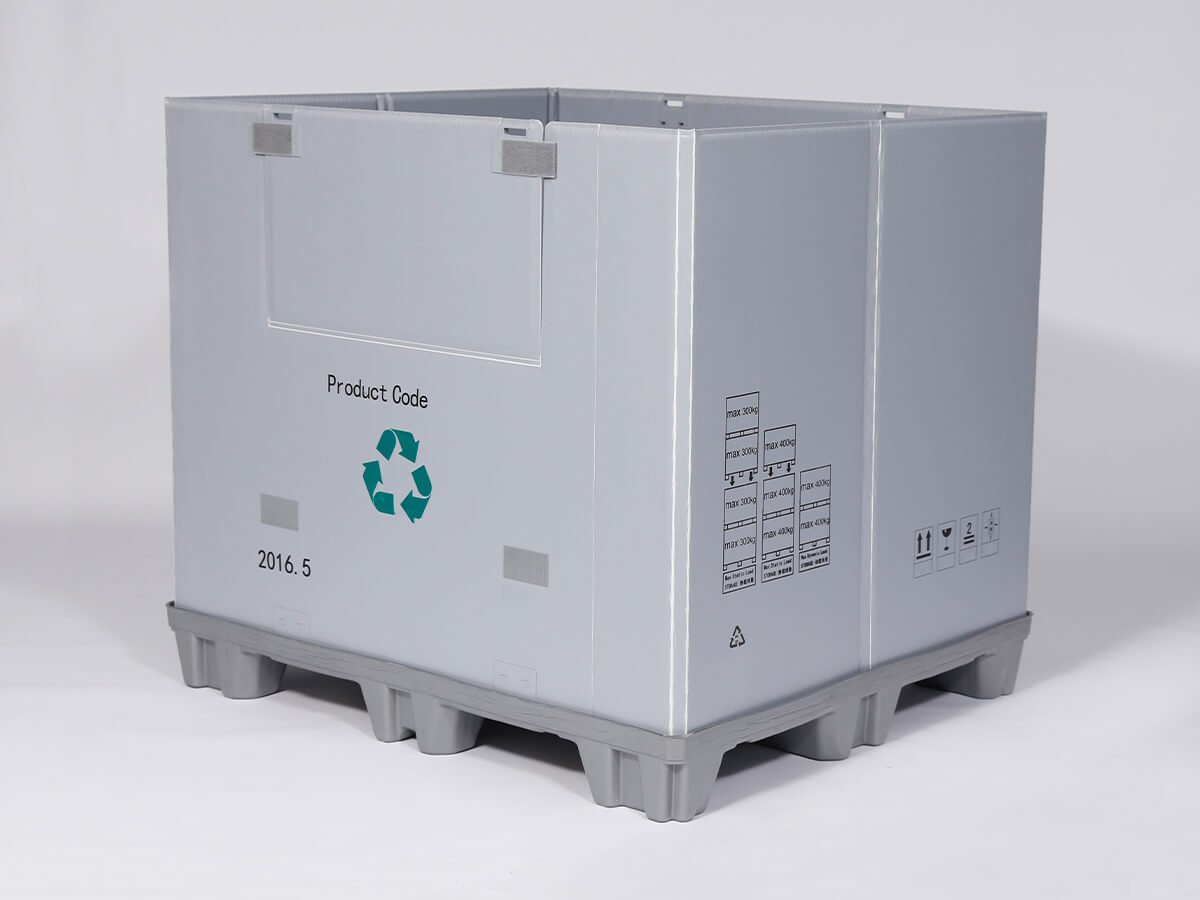

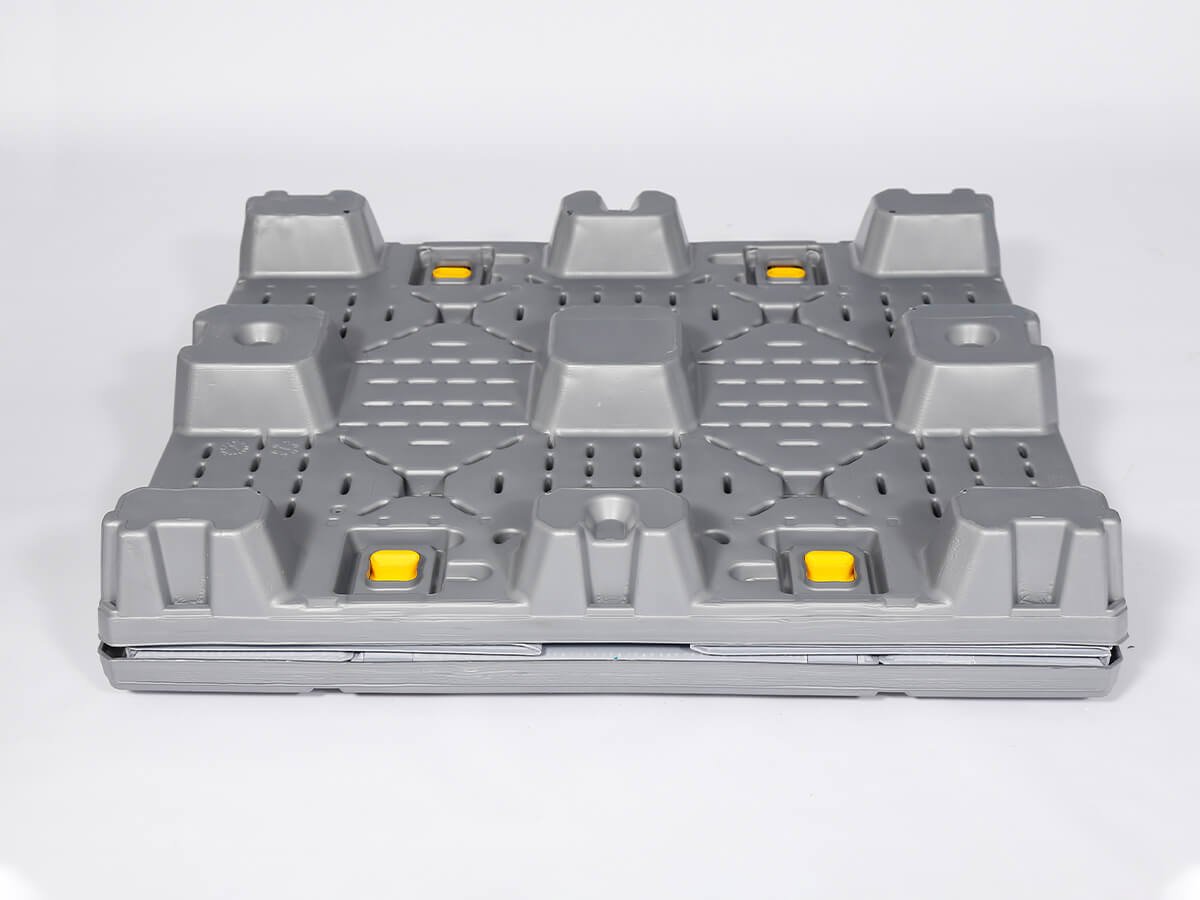

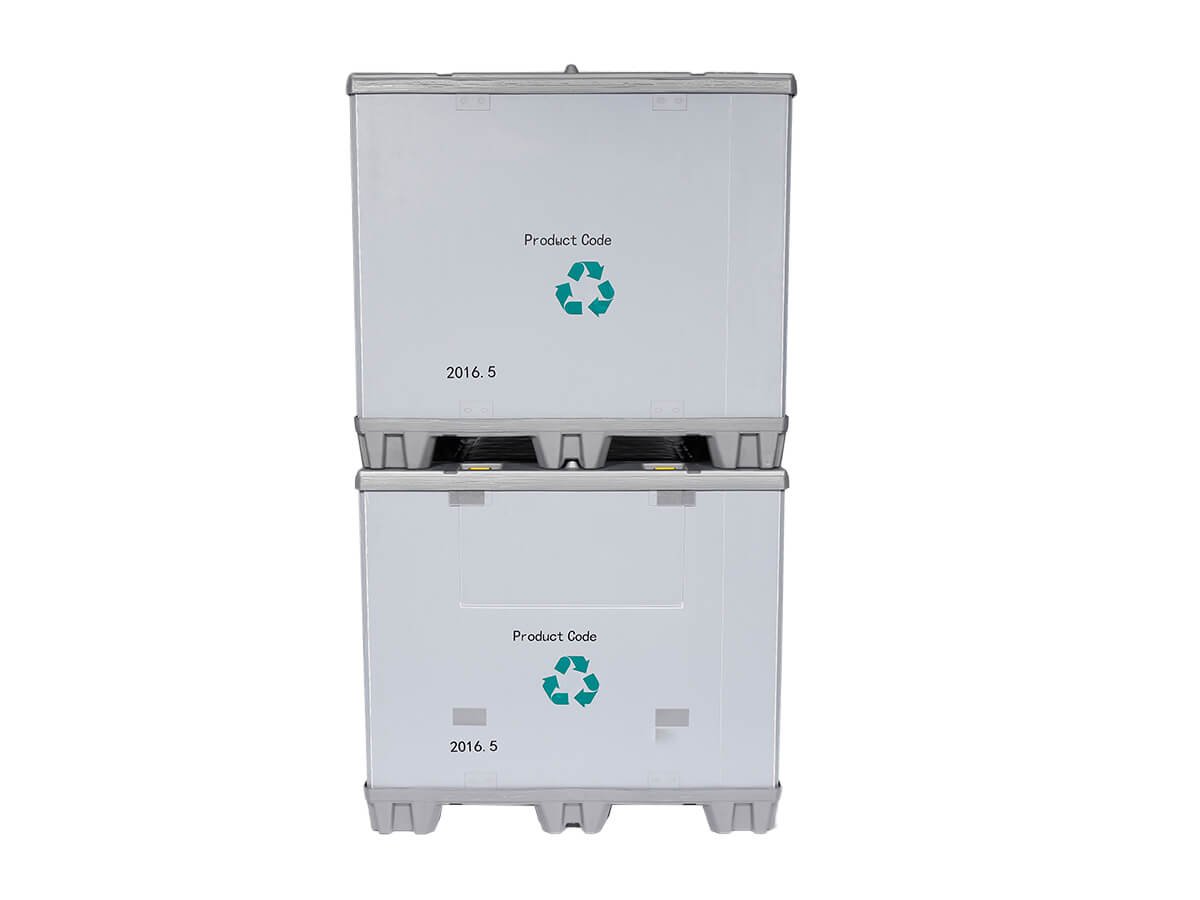

1220×1150 Sleeve Pack Container SPB08 | 9 Feet | Vacuum Thermoforming
View More Specification
Download Specification Sheet
Specifications
Basic Data
Materials
HDPE + PP
External Dimensions
1220mm x 1150mm
Internal Dimensions
1145mm x 1055mm
Height
Custom

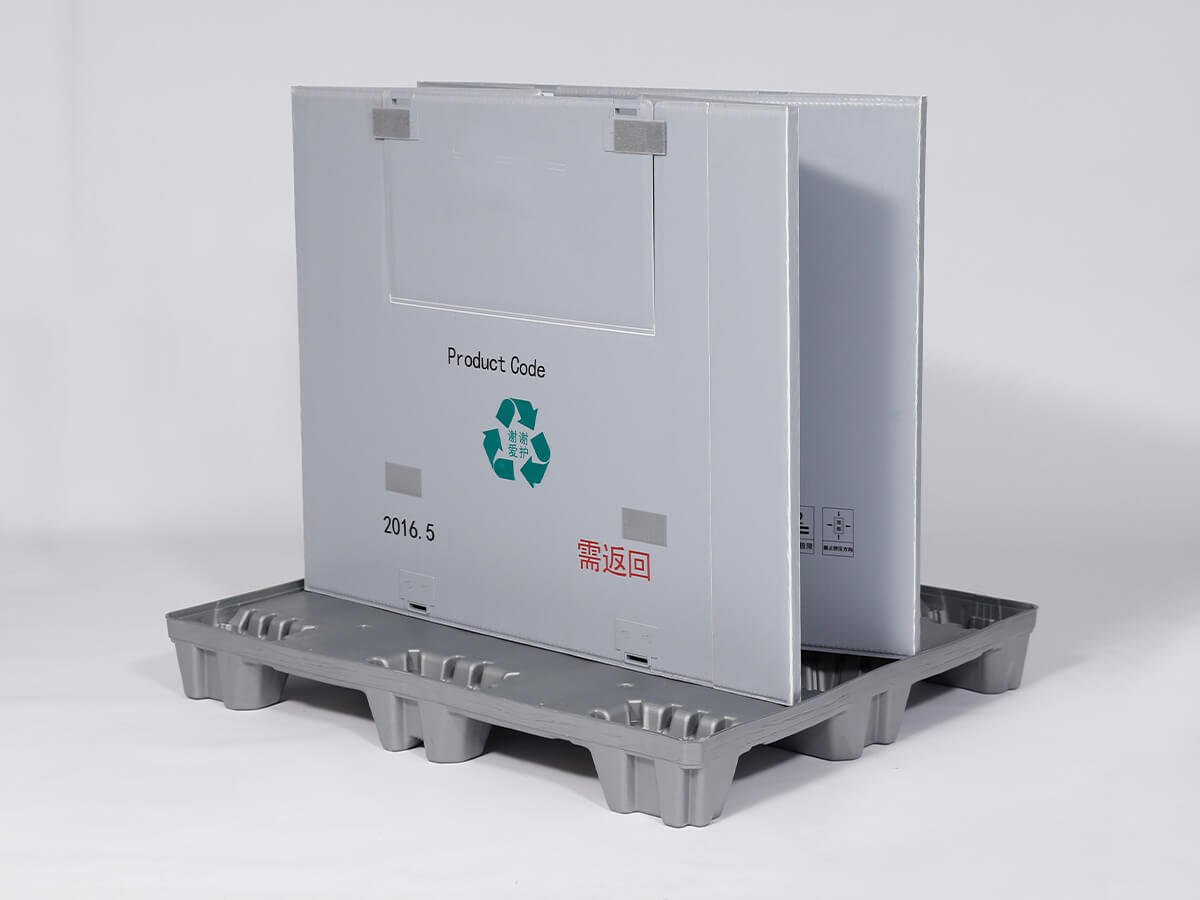

Sleeve
3000gsm, 3500gsm, 4000gsm, 4500gsm , Custom
Fill Weight
Custom
Stacking Configuration
1+3 / Custom
Return Ratio
1 : 5
Molding Process
Vacuum Thermoforming

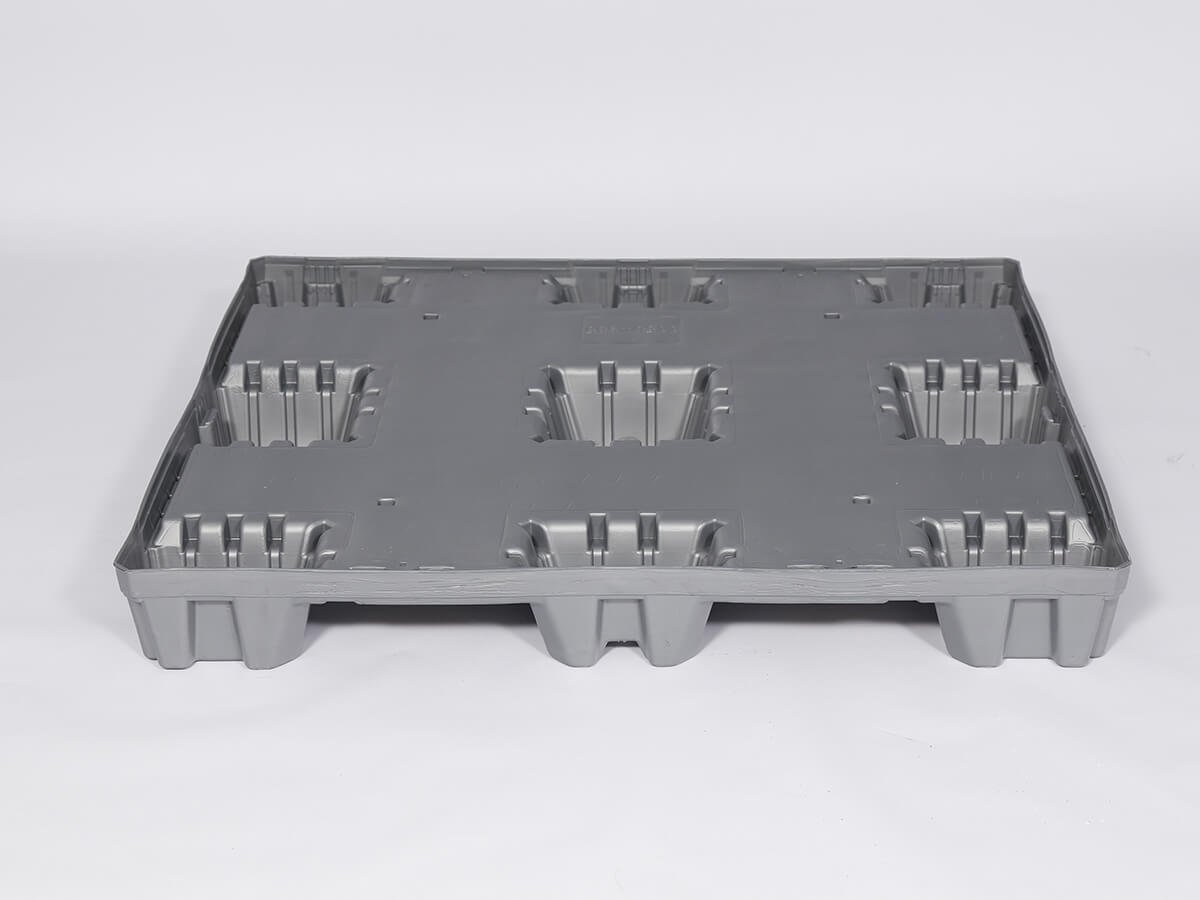

Base Support
9 Feet
Reinforcement Bars
N/A

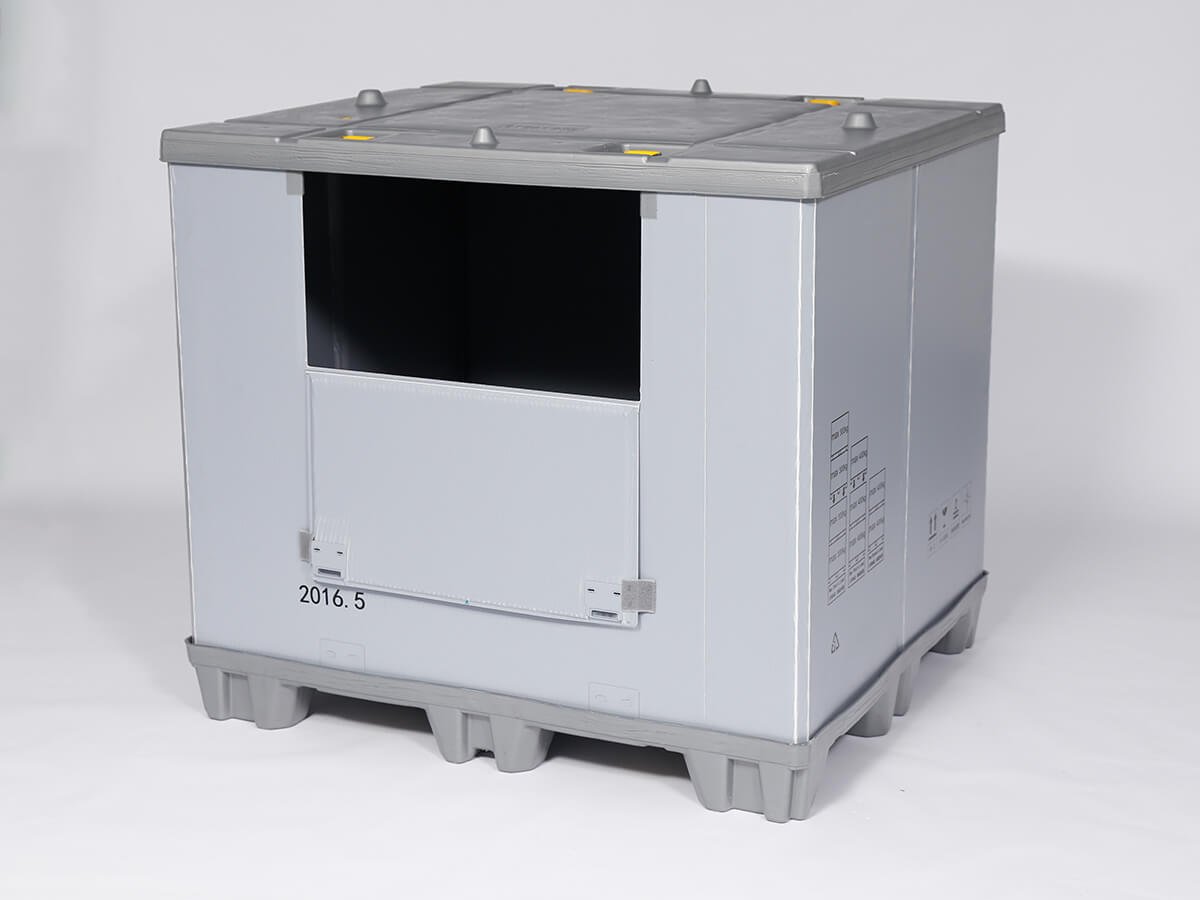

Access Door
Optional
Latches
Yes
Base Weight
11 kg
Lid Weight
9 kg
Sleeve height
Overall Height - 200 mm
Effective Height
Overall Height - 200 mm
Liner & Dunages
Custom
Usability
Rackable
Stacking Configuration
1+3 / Custom
Reusability
100+ Reuse Cycles
Forklift
Compatible
Pallet Jack
Compatible
Entries
4 Way
Logo, Color & Printings
Custom
Working Temperature
-20℃ to 55℃
Load Capacity
Static Capaciy
3000 kg
Dynamic Capacity
1000 kg
Filling Volume
Custom
Shipping Information
MOQ
100pcs
Leadtime
7 to 10 days
40HC Quantity
280 pcs
Related Products

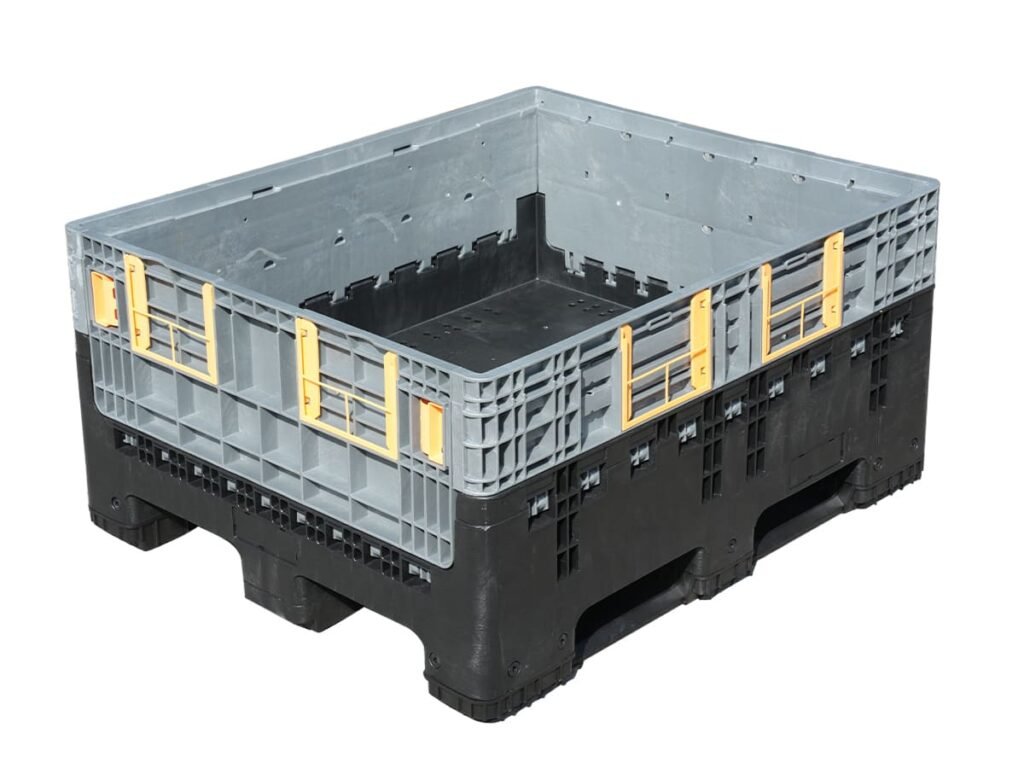

1200×1000 Collapsible Bulk Container 1210C | 400 Liter
- Dimensions:
- Materials:
- Weight:
- Static Capacity:
- Dynamic Capacity:
- Racking Capacity:
1470×1150 Sleeve Pack Containers SPB14 | 9 Feet | Vacuum Thermoforming
- Dimensions:
- Materials:
- Weight:
- Static Capacity:
- Dynamic Capacity:
- Racking Capacity:

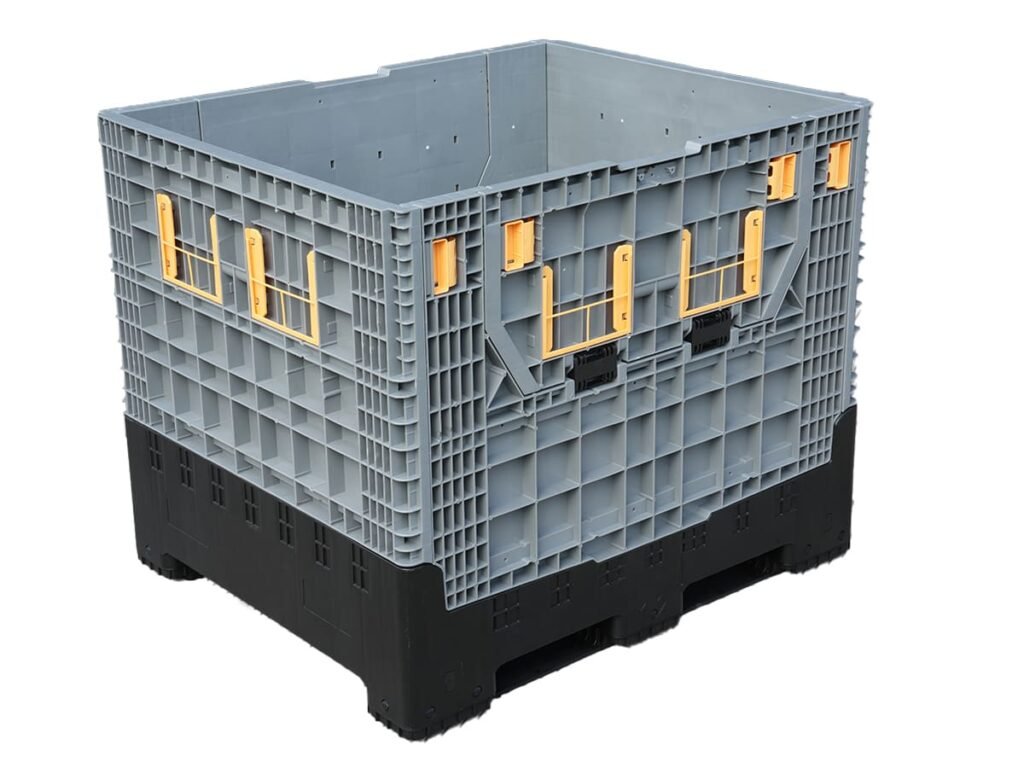

1200×1000 Collapsible Plastic Bulk Container 1210B | 800 Liter
- Dimensions:
- Materials:
- Weight:
- Static Capacity:
- Dynamic Capacity:
- Racking Capacity:

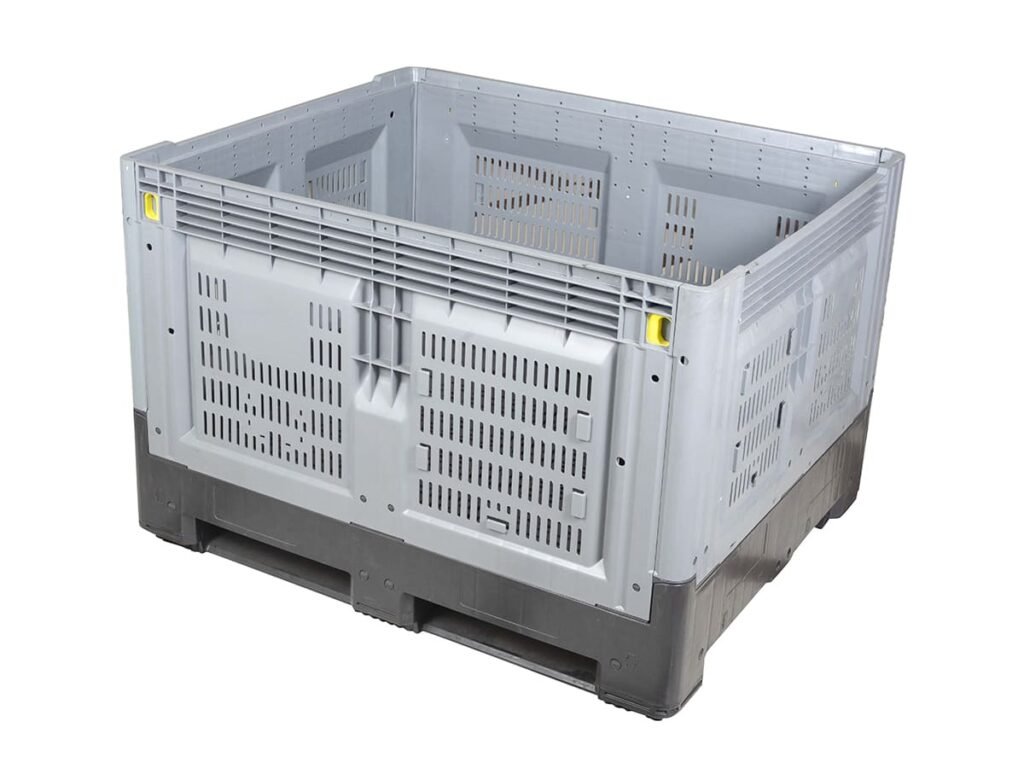

1200×1000 Collapsible Plastic Pallet Bin | Ventilated Walls | 1210EW
