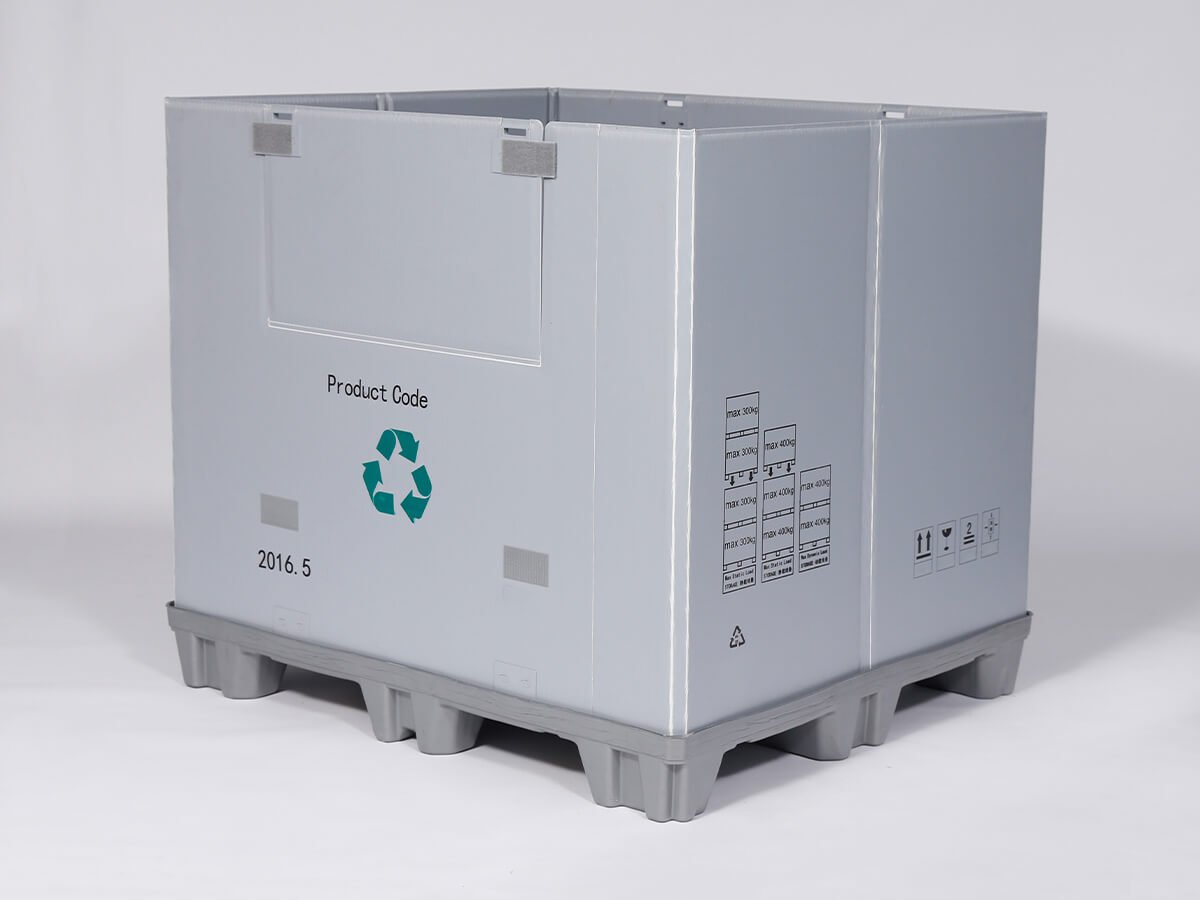

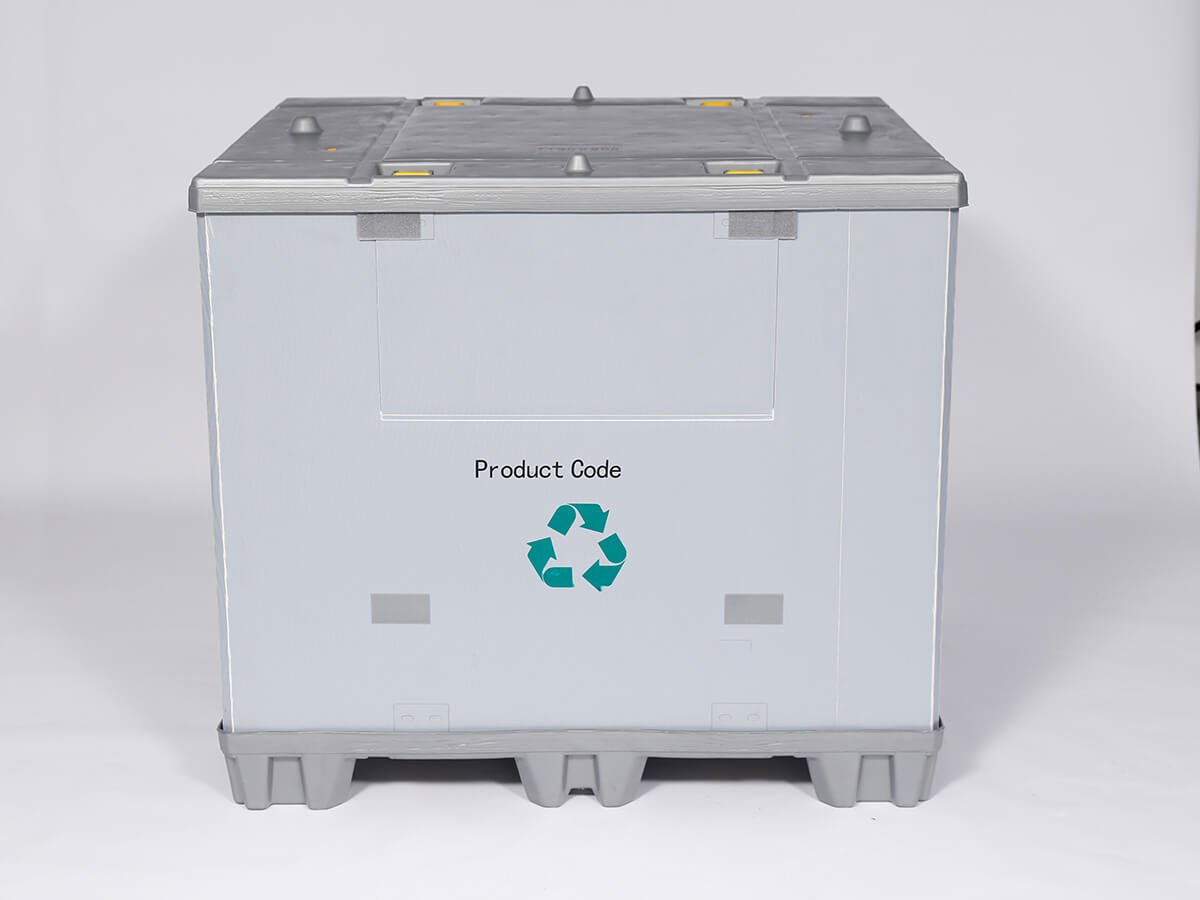

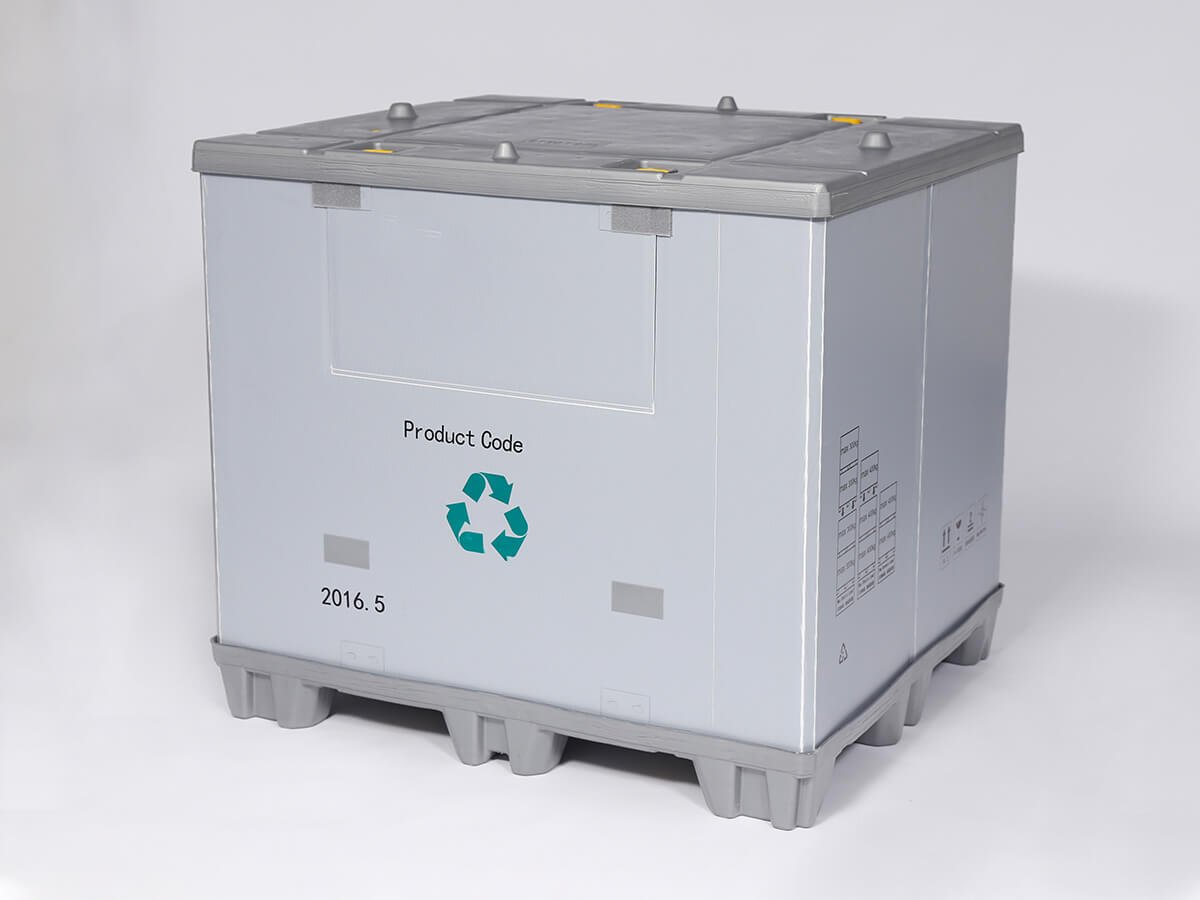

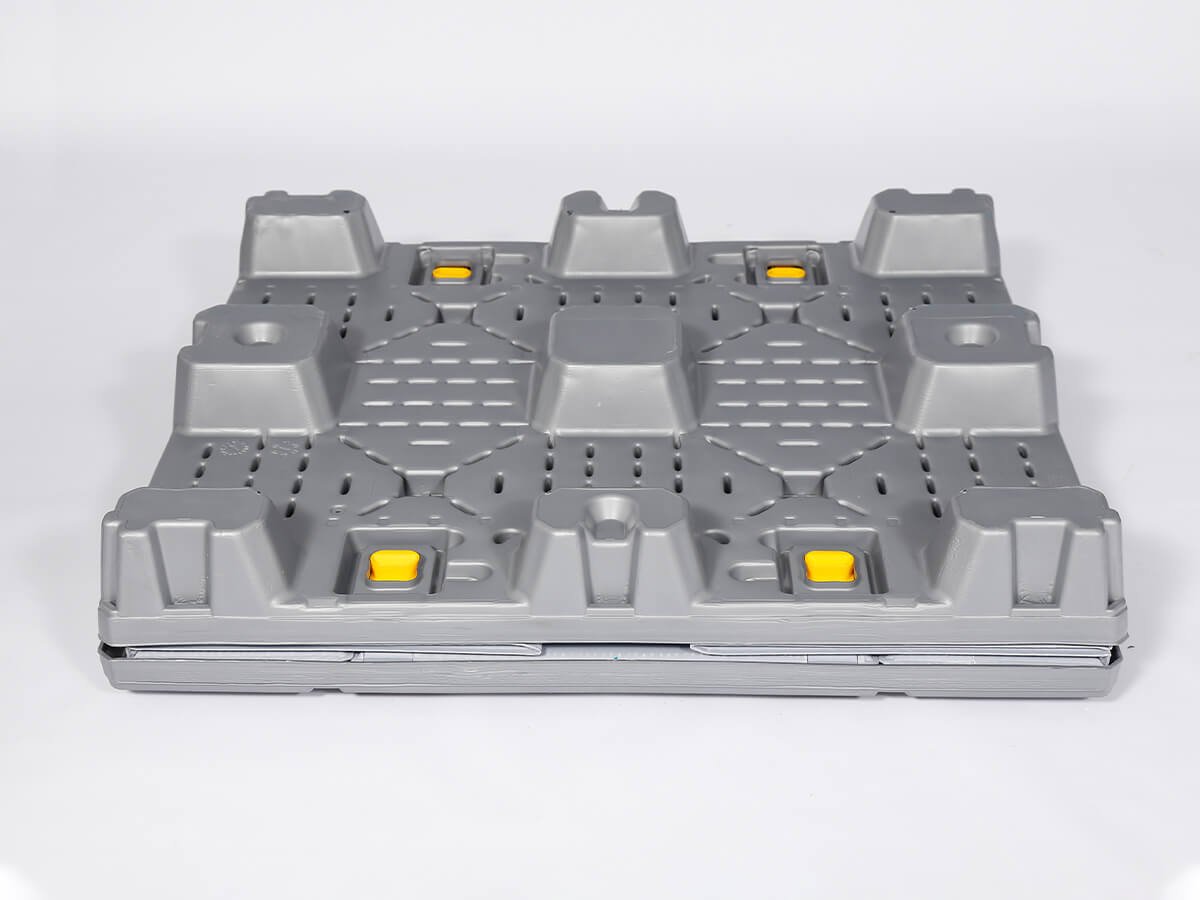

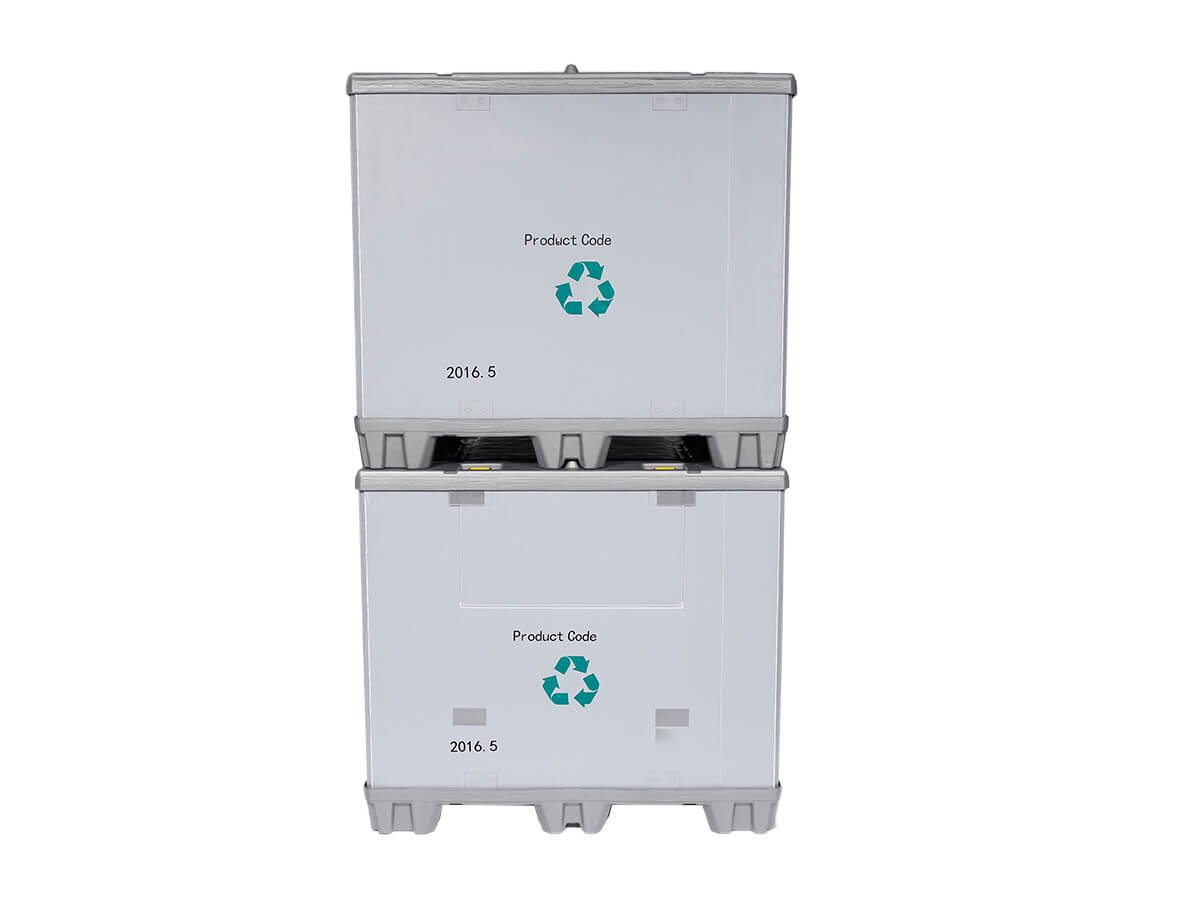

1150×1150 Sleeve Pack Container SPB04 | 9 Feet | Vacuum Thermoforming
View More Specification
Download Specification Sheet
Specifications
Basic Data
Materials
HDPE + PP
External Dimensions
1150 mm x 1150 mm
Internal Dimensions
1105 mm x 1105 mm
Height
Custom
Sleeve
3000gsm, 3500gsm, 4000gsm, 4500gsm , Custom
Fill Weight
Custom
Stacking Configuration
1+3 / Custom

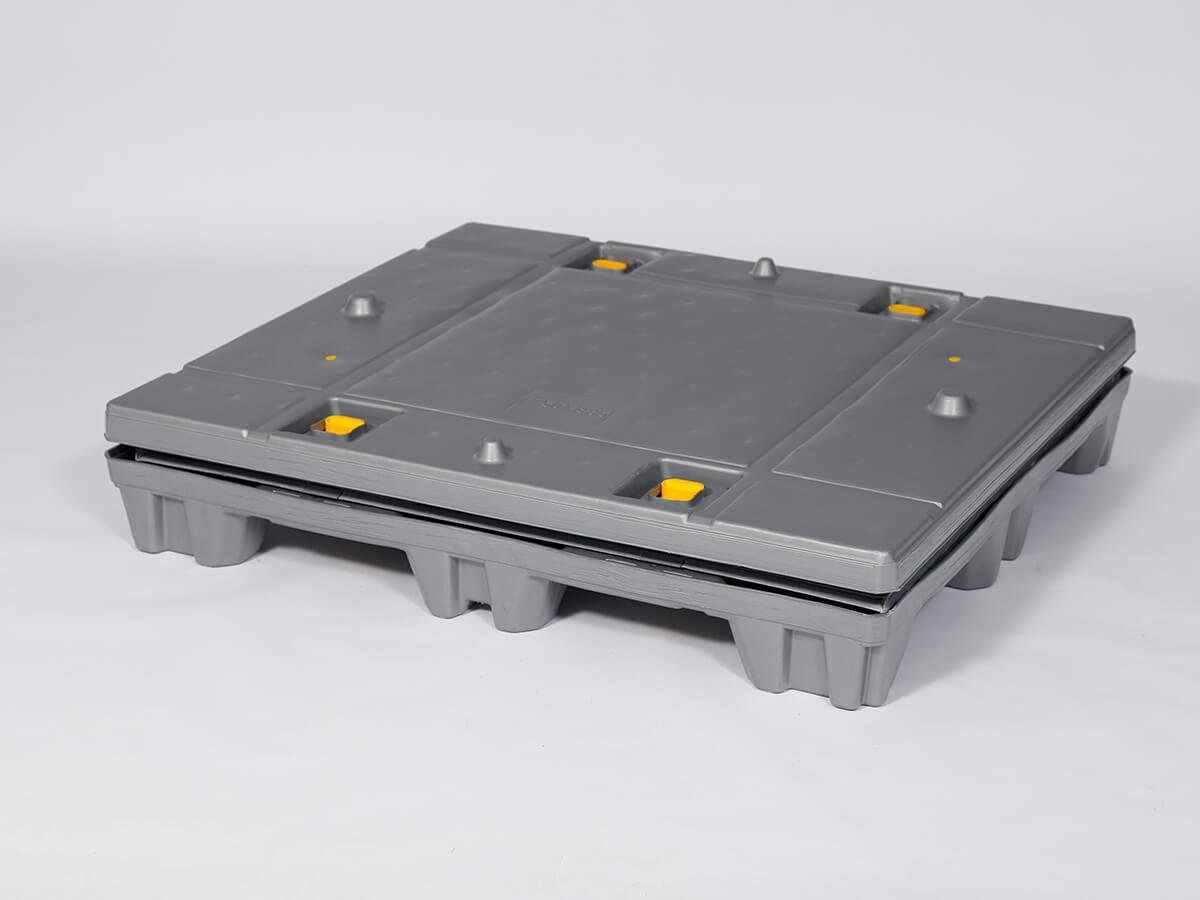

Return Ratio
1 : 5
Molding Process
Vacuum Thermoforming

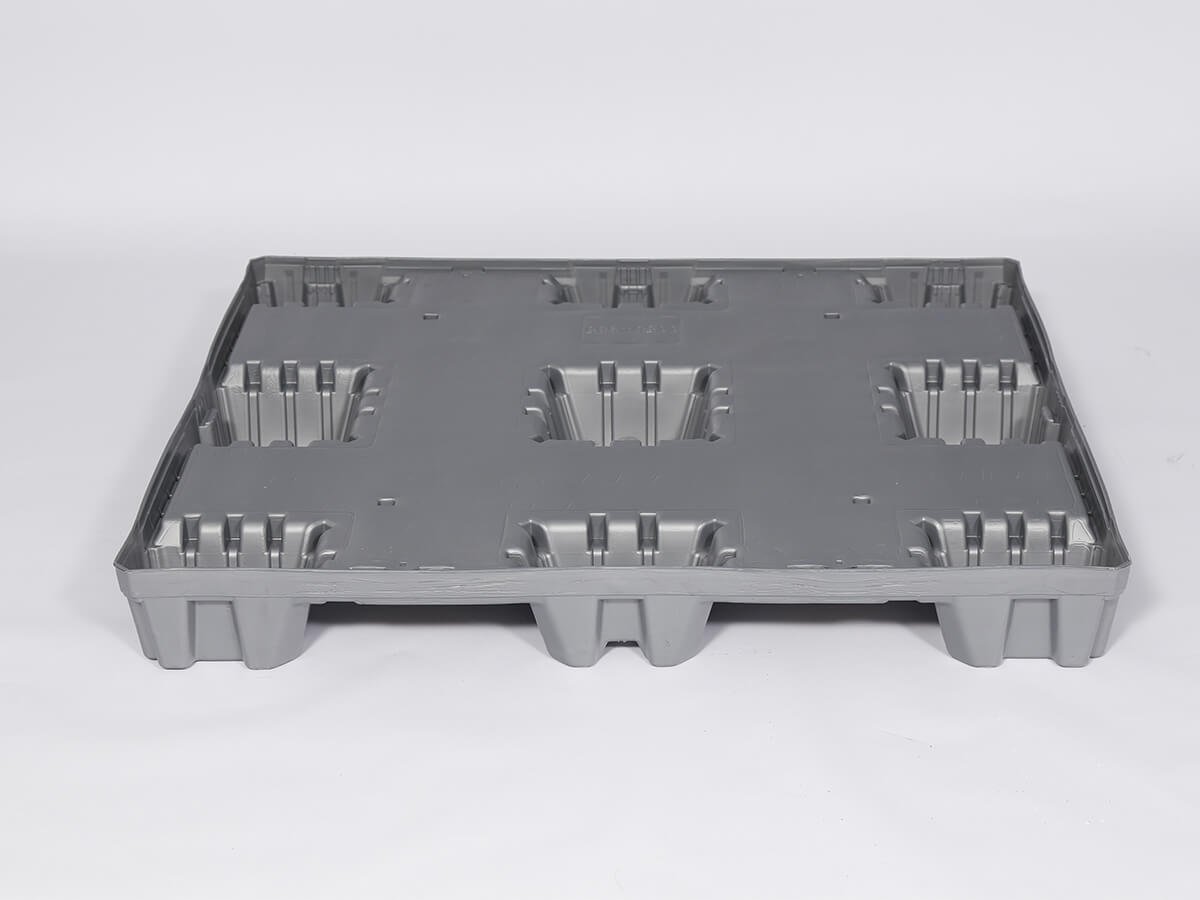

Base Support
9 Feet
Reinforcement Bars
Optional / Up to 2 Metal Bars

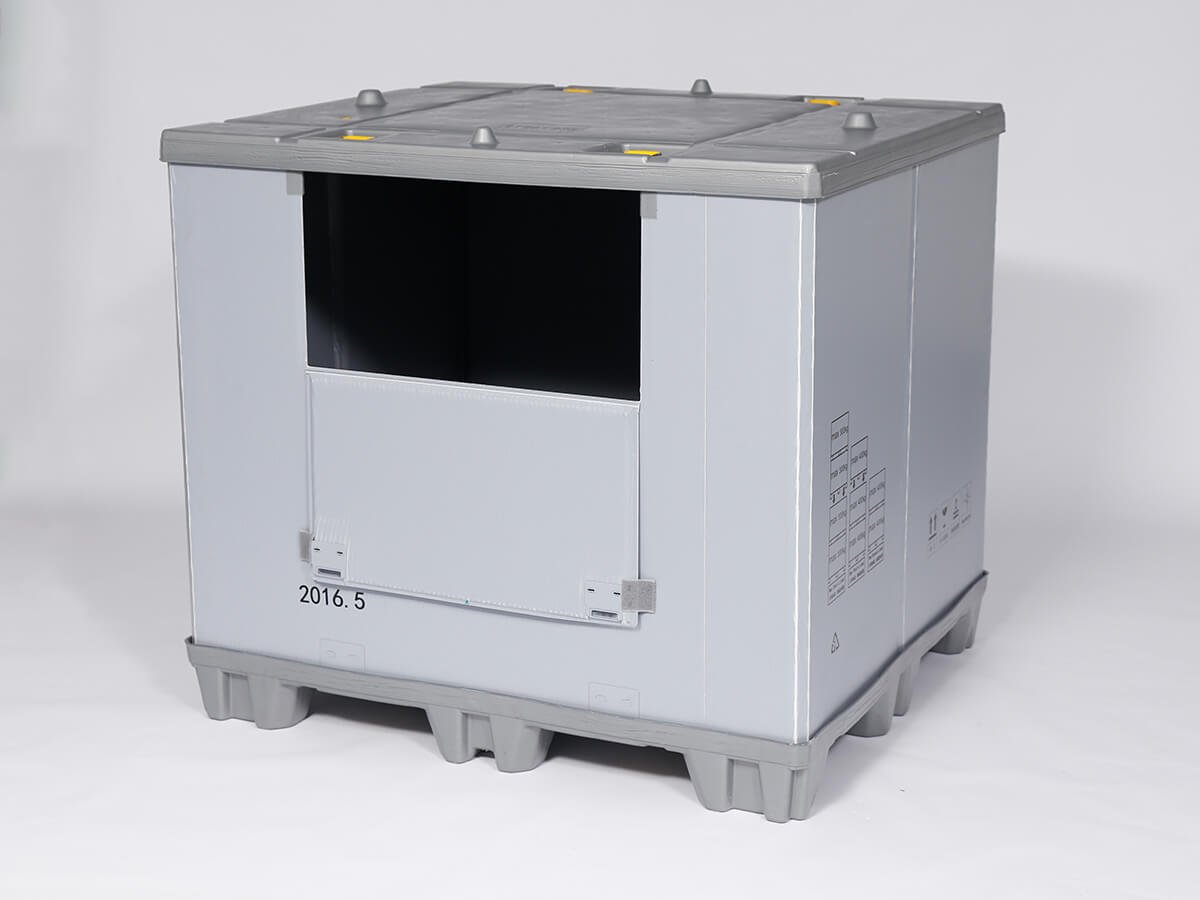

Access Door
Optional
Latches
Yes
Base Weight
10.5 kg
Lid Weight
8.5 kg
Sleeve height
Overall Height - 170 mm
Effective Height
Overall Height - 170 mm
Liner & Dunages
Custom
Usability
Rackable
Stacking Configuration
1+3 / Custom
Reusability
100+ Reuse Cycles
Forklift
Compatible
Pallet Jack
Compatible
Entries
4 Way
Logo, Color & Printings
Custom
Working Temperature
-20℃ to 55℃
Load Capacity
Static Capaciy
3000 kg
Dynamic Capacity
1000 kg
Filling Volume
Custom
Shipping Information
MOQ
100pcs
Leadtime
7 to 10 days
40HC Quantity
390 pcs
Related Products
1350×1150 Sleeve Pack Containers SPB03 | 9 Feet | Vacuum Thermoforming
- Dimensions:
- Materials:
- Weight:
- Static Capacity:
- Dynamic Capacity:
- Racking Capacity:
800×600 Sleeve Pack Container SPB11 | 9 Feet | Vacuum Thermoforming
- Dimensions:
- Materials:
- Weight:
- Static Capacity:
- Dynamic Capacity:
- Racking Capacity:

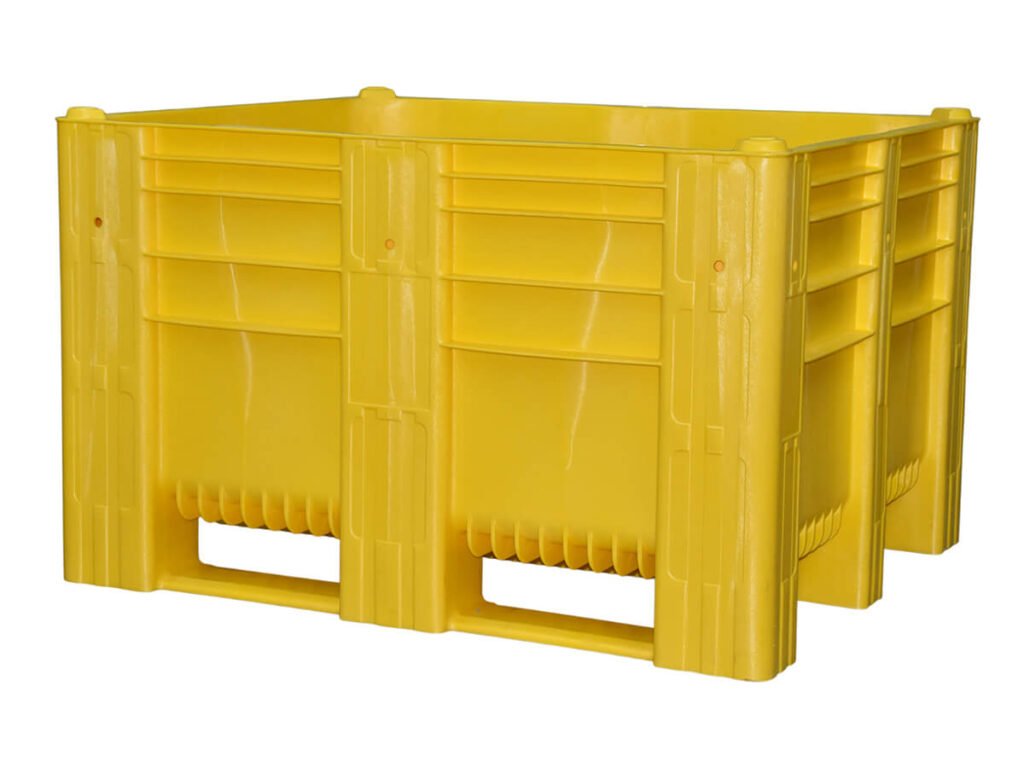

1200×1000 Rigid Plastic Pallet Bin | 617 Liter | 1210DE
