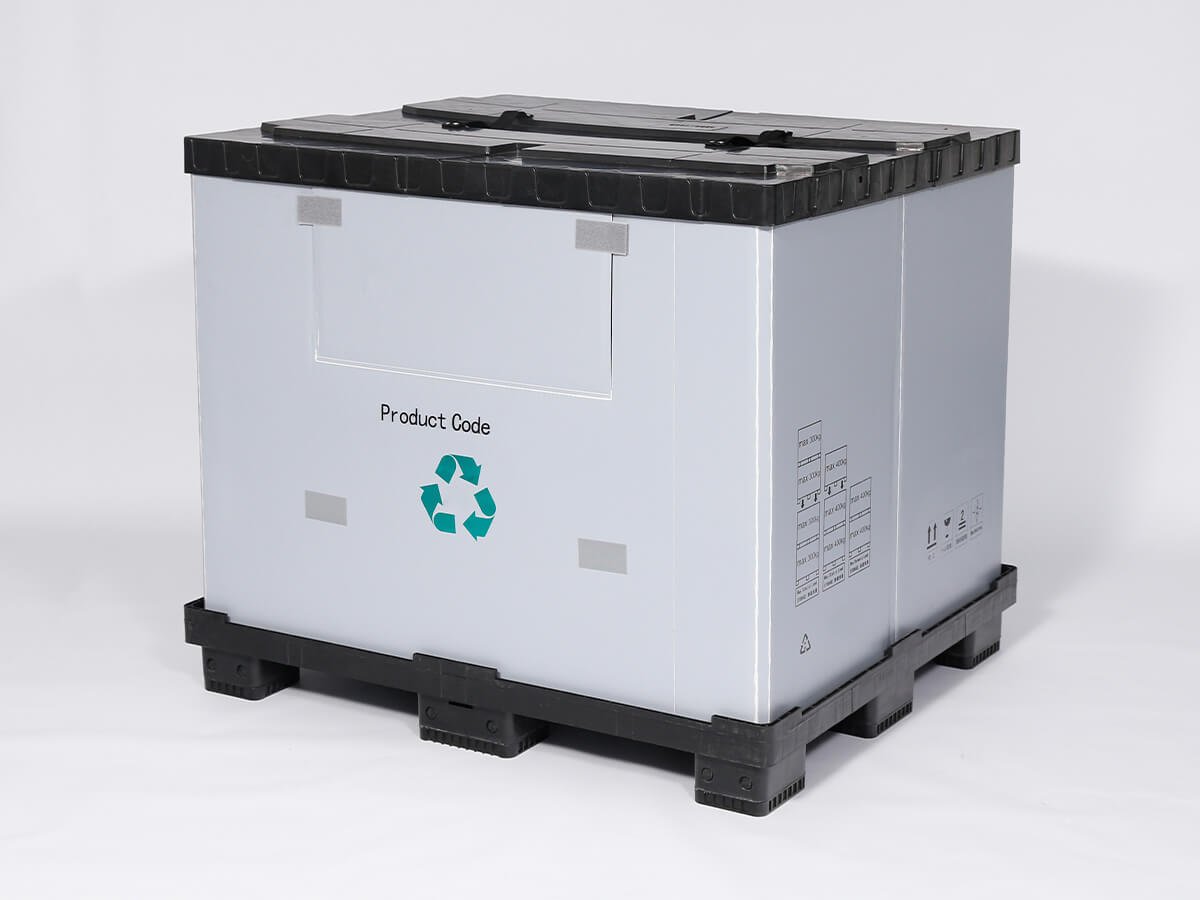

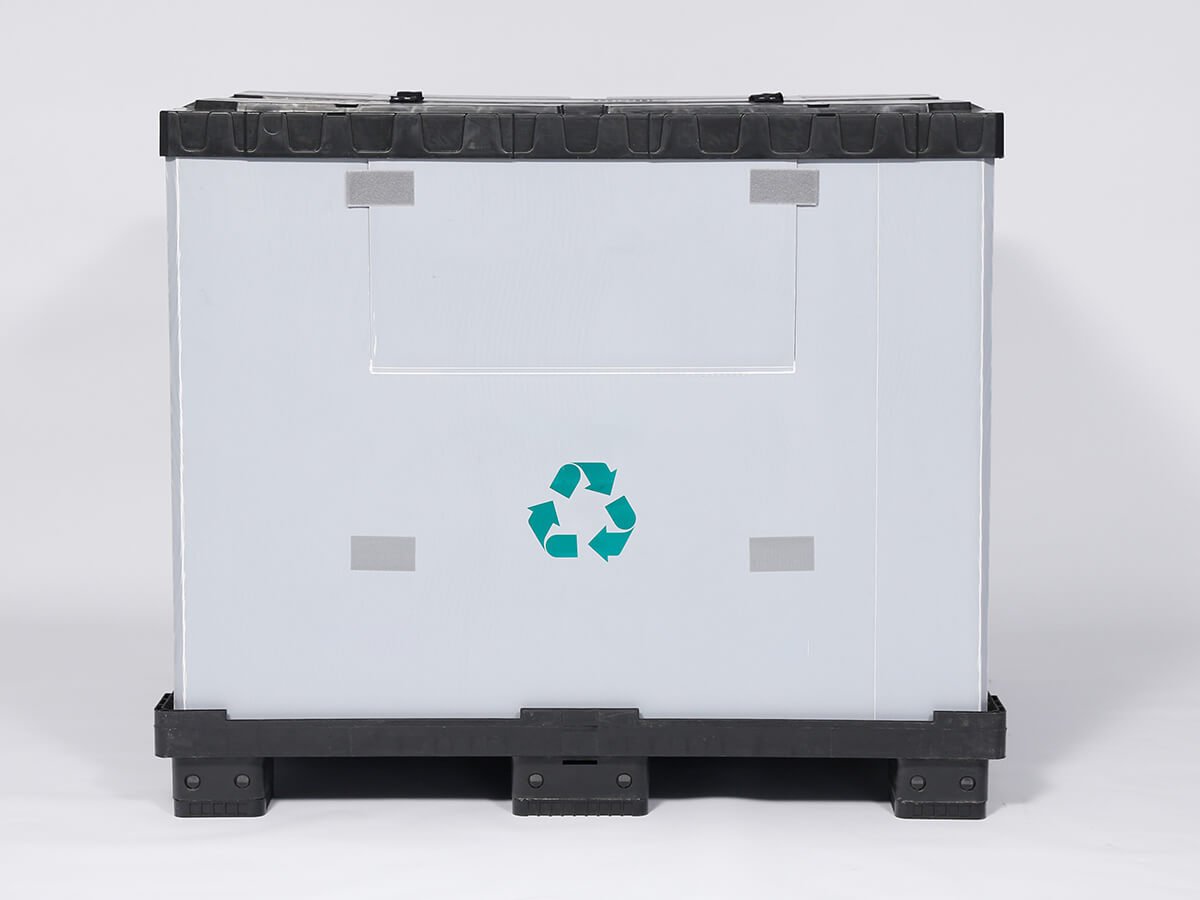

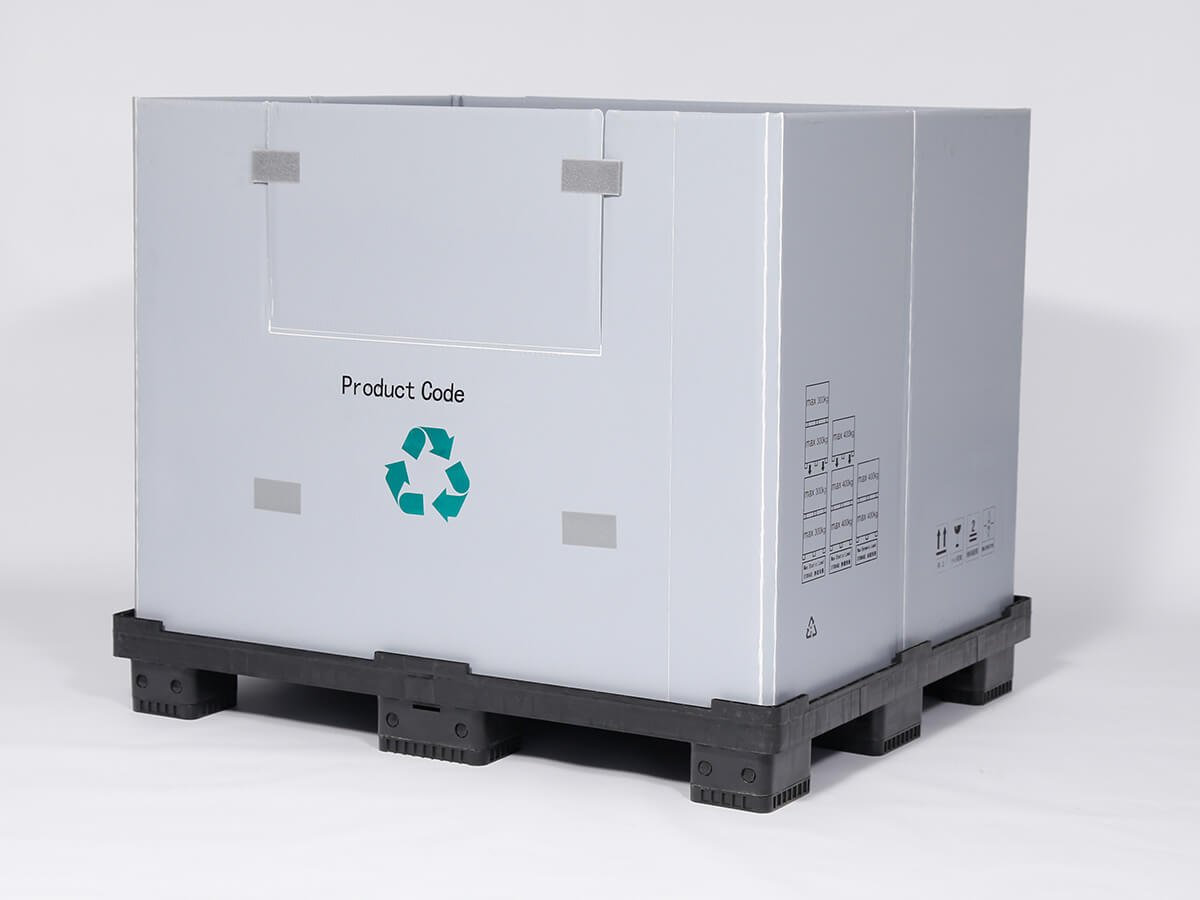

1140×980 Sleeve Pack Container SPB20 | 9 Feet | Injection Molding
View More Specification
Download Specification Sheet
Specifications
Basic Data
Materials
HDPE + PP
External Dimensions
1140 mm x 980 mm
Internal Dimensions
1070 mm x 910 mm
Height
Custom

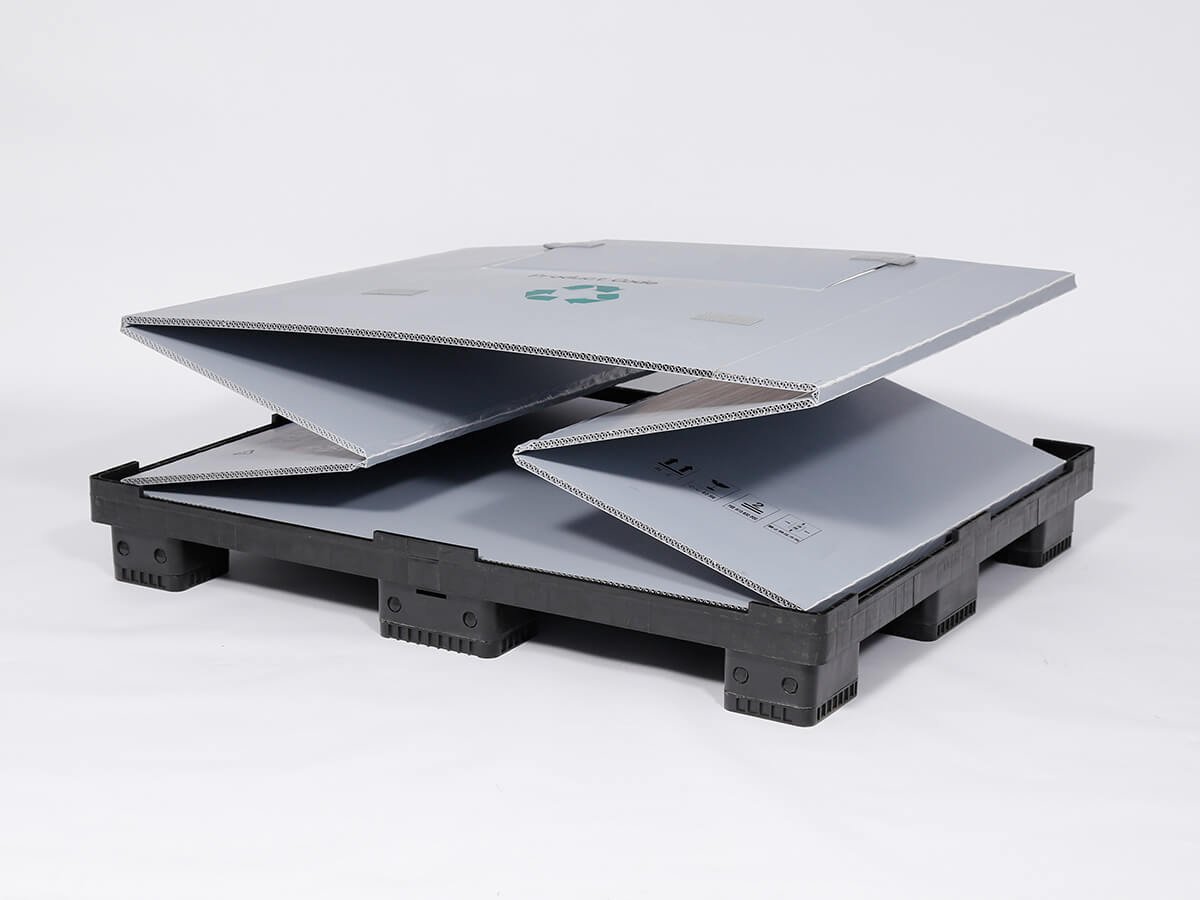

Sleeve
3000gsm, 3500gsm, 4000gsm, 4500gsm , Custom
Fill Weight
Custom
Stacking Configuration
1+5 / Custom

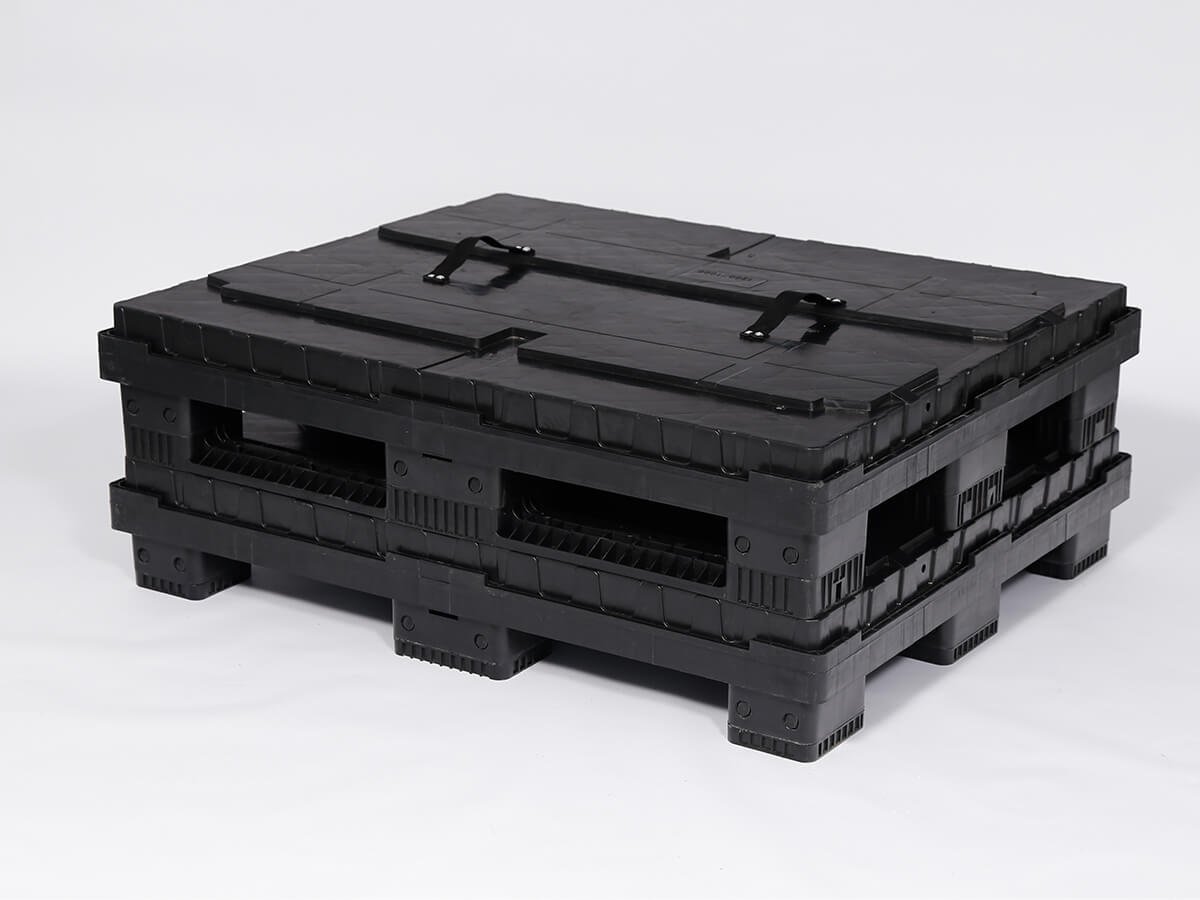

Return Ratio
1 : 4
Molding Process
Injection Molding
Base Support
9 Feet
Reinforcement Bars
N/A

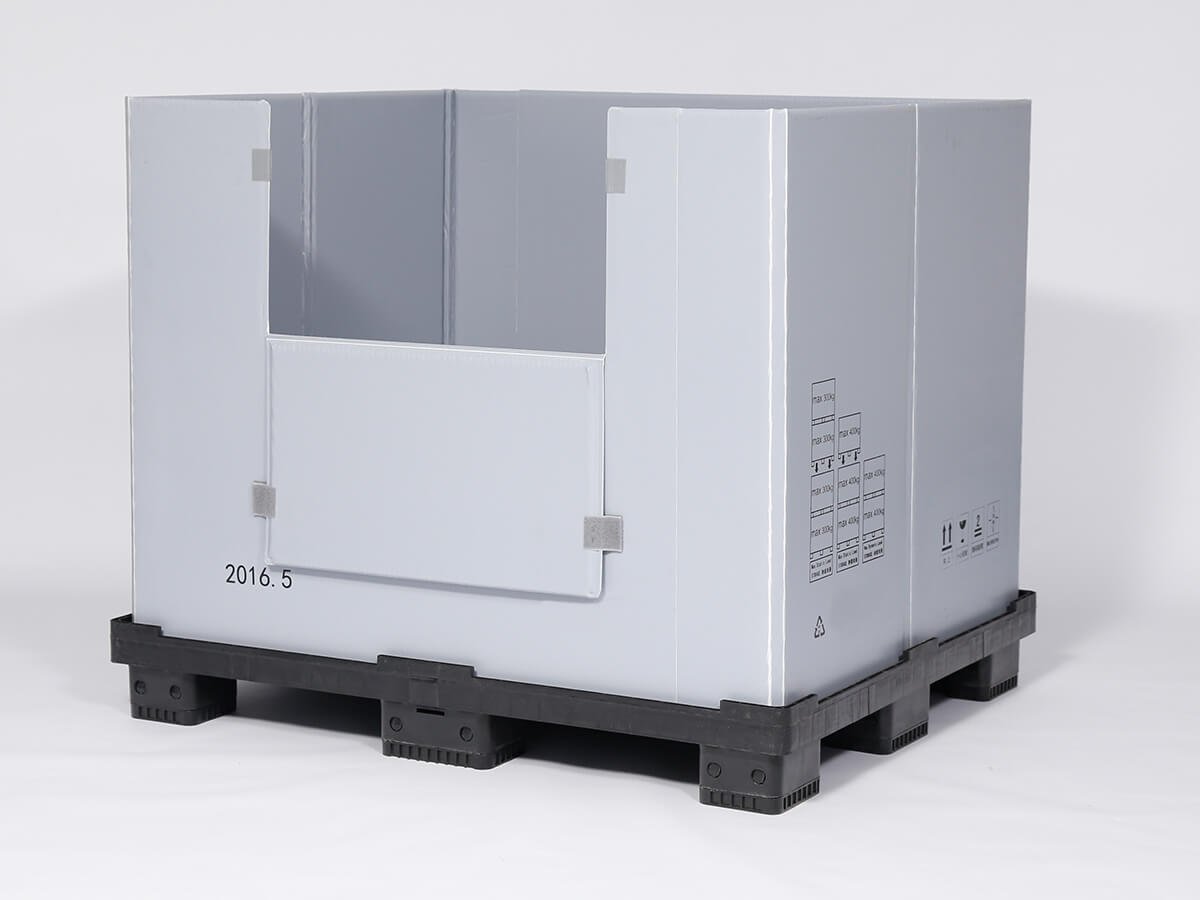

Access Door
Optional
Latches
Yes
Base Weight
15 kg

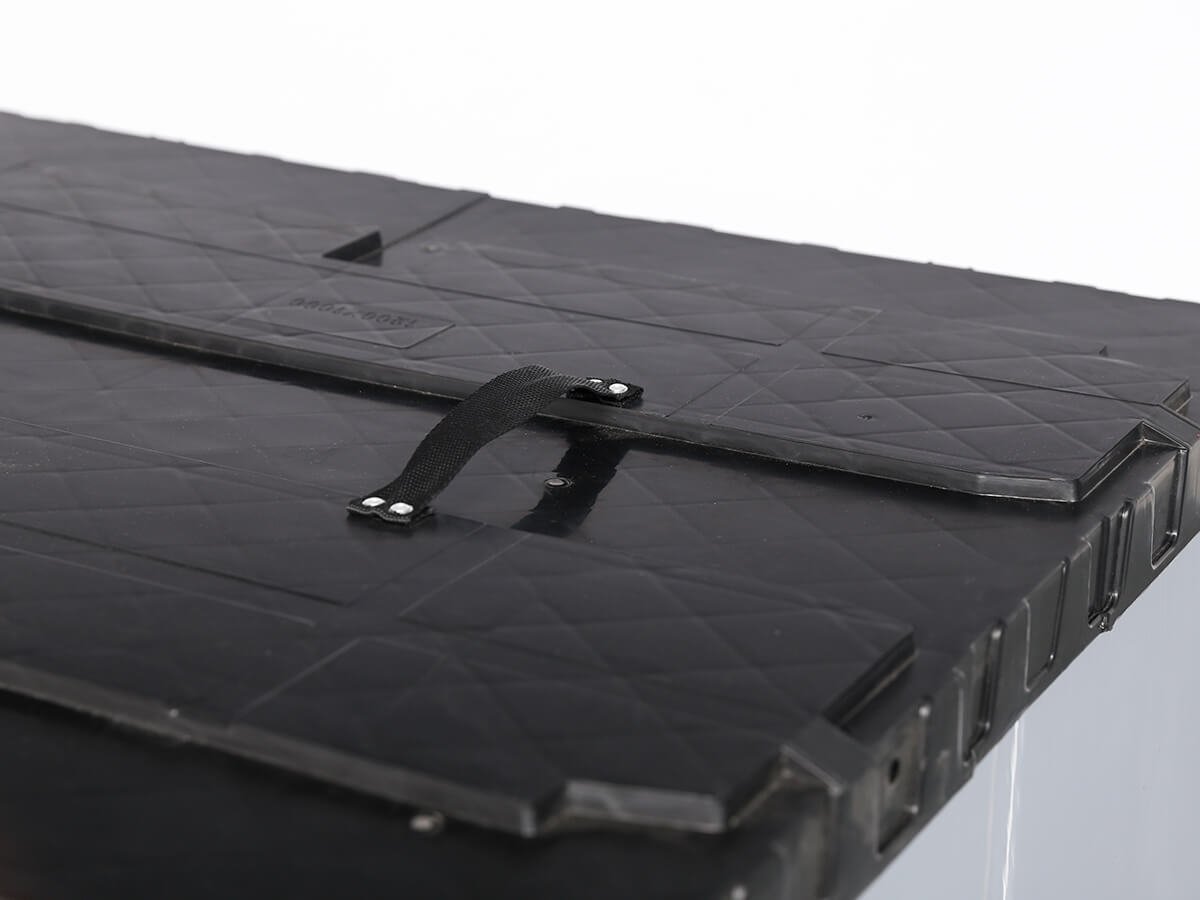

Lid Weight
7 kg
Sleeve height
Overall Height - 145 mm
Effective Height
Overall Height - 145 mm
Liner & Dunages
Custom
Usability
Rackable
Stacking Configuration
1+5 / Custom
Reusability
100+ Reuse Cycles
Forklift
Compatible
Pallet Jack
Compatible
Entries
4 Way
Logo, Color & Printings
Custom
Working Temperature
-20℃ to 55℃

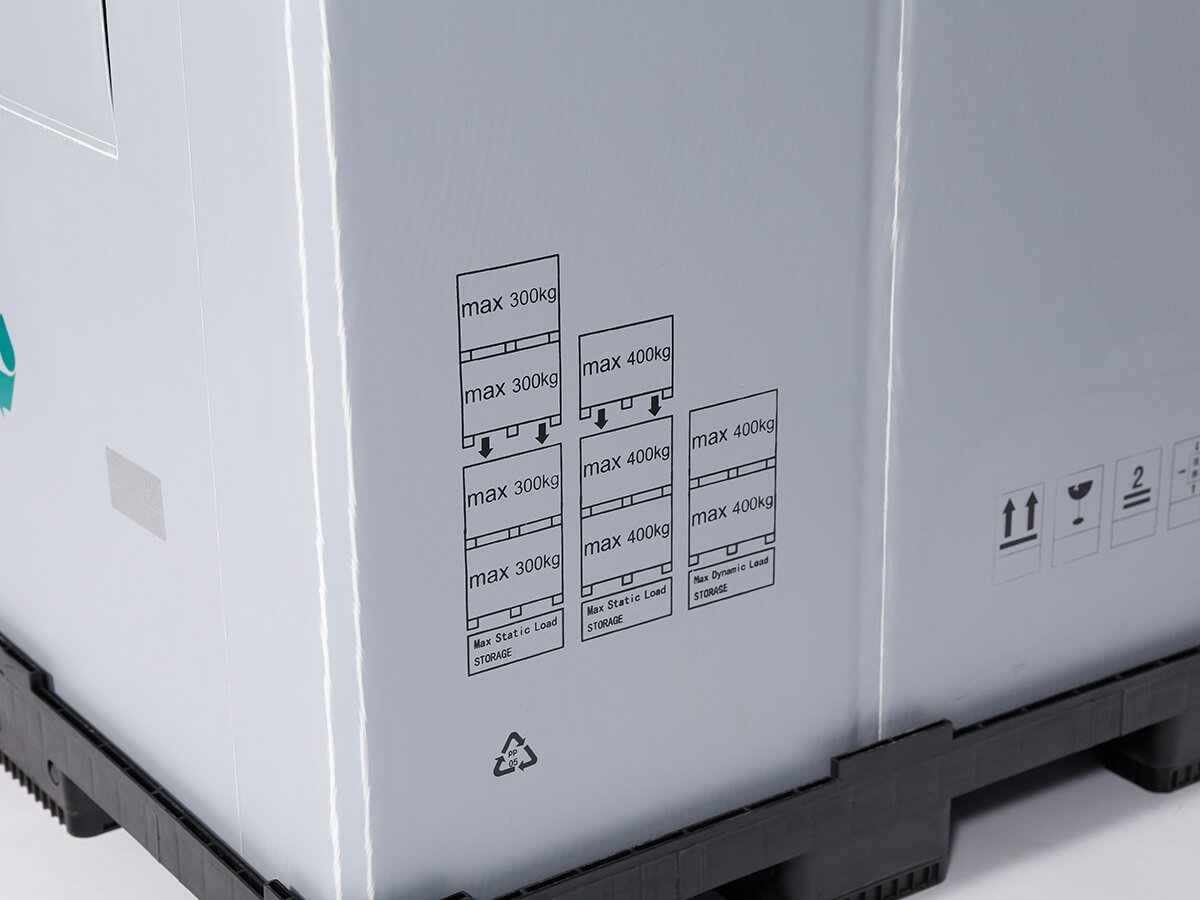

Load Capacity
Static Capaciy
4000 kg
Dynamic Capacity
1000 kg
Filling Volume
Custom
Shipping Information
MOQ
100pcs
Leadtime
7 to 10 days
40HC Quantity
340 pcs
Related Products
800×600 Sleeve Pack Container SPB11 | 9 Feet | Vacuum Thermoforming
- Dimensions:
- Materials:
- Weight:
- Static Capacity:
- Dynamic Capacity:
- Racking Capacity:
1200×1000 Collapsible Bulk Container 1210C | 400 Liter
- Dimensions:
- Materials:
- Weight:
- Static Capacity:
- Dynamic Capacity:
- Racking Capacity:
1200×1000 Pallet Sleeve Pack SPB13 | 9 Feet | Vacuum Thermoforming
- Dimensions:
- Materials:
- Weight:
- Static Capacity:
- Dynamic Capacity:
- Racking Capacity:

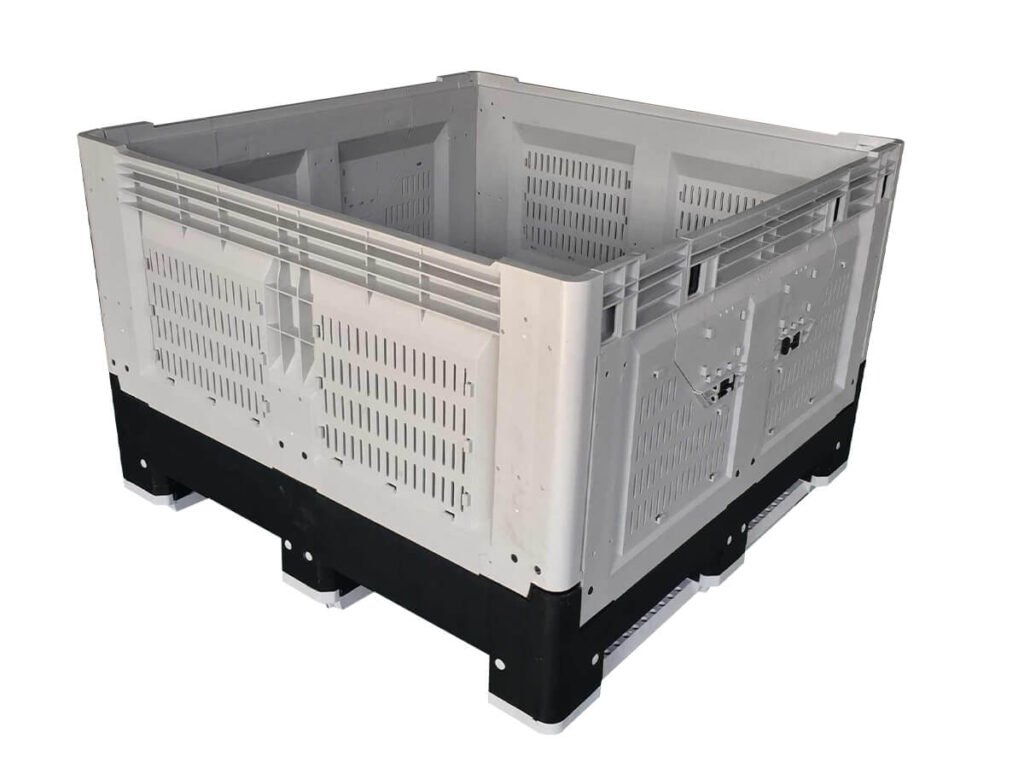

1162×1162 Collapsible Plastic Pallet Bin | Ventilated Walls with Drop Doors | 1162W
